High Quality Best Selling Stone Crusher Hammer Crusher For Hot Sale In Africa

ZhengZhou HengXing Heavy Equipment Co.,Ltd.
Contact Now
    Buy cheap High Quality Best Selling Stone Crusher Hammer Crusher For Hot Sale In Africa from wholesalers

    Buy cheap High Quality Best Selling Stone Crusher Hammer Crusher For Hot Sale In Africa from wholesalers
    • Buy cheap High Quality Best Selling Stone Crusher Hammer Crusher For Hot Sale In Africa from wholesalers

    High Quality Best Selling Stone Crusher Hammer Crusher For Hot Sale In Africa

    Ask Lasest Price
    Brand Name : Hengxing
    Model Number : PC600*400,PC800*800,PC800*600,PC1000*1000
    Certification : ISO,CE
    Price : negotiate depend on different model
    Payment Terms : T/T,L/C
    Supply Ability : 100sets per year
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

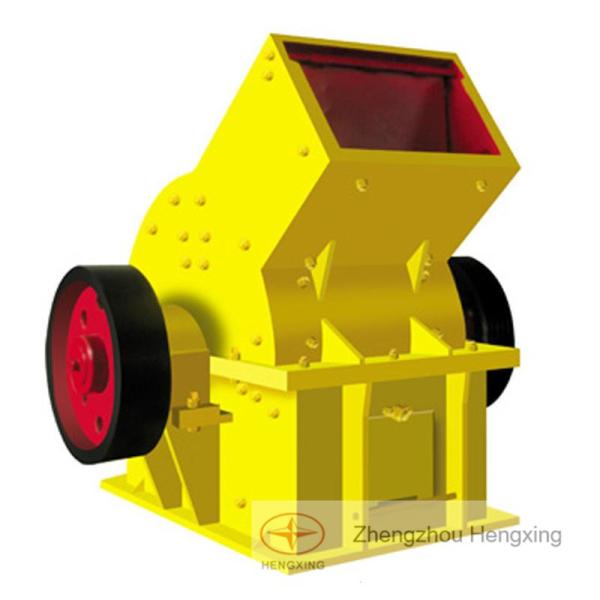

    High Quality Best Selling Stone Crusher Hammer Crusher For Hot Sale In Africa

    High Quality Best Selling Stone Crusher Hammer Crusher For Hot Sale In Africa

    Hammer crusher machine is suitable for crushing brittle materials, medium-hard materials and materials with low moisture content; as well as limestone, coal, shale, gypsum, chalk, asbestos ore, coke in building materials, chemicals, electric power, mining, metallurgy and other industries.

    Hammer crusher structure:

    Hammer crusher is composed of machine box, rotor, hammer, impacting lining board and screen board. According to the requirement of the customers, this equipment can adjust the gap between the grating bars to change the discharging granularity.


    Hammer crusher working principle:

    Hammer crusher main working parts with a hammer (also known as the hammer) of the rotor. Rotor from the spindle, disk, pin and hammer. Motor drives the rotor rotating at high speed in the crushing cavity. Material from the upper mouth to feed into the machine, by the high velocity of the hammer blow, impact, shear, abrasive and grinding. The lower part of the rotor, with sieve, mesh size is less than crushing the grain discharged through the sieve, sieve size larger than the coarse sieve retention continue to be a hammer blow and grinding, and finally through the sieve from the plane.


    Hammer crusher advantages:

    1. The working hammer adopts new technology for casting, so that it is wear resistant and impact resistant.

    2. The granularity can be adjusted according to the requirement of the customers.

    3. Hammer crusher has a sealed structure which solves the problems of powder dust pollution in the crushing workshop and ash leakage of the machine.

    4. This crusher has the advantages of attractive appearance, compact structure and few easy-wearing parts and convenient maintenance.

    Hammer crusher main technical specifications:

    Model
    Specification
    Feeding
    Size
    (mm)
    Discharging
    Size
    (mm)
    Capacity
    (m³/h)
    Motor
    power
    (kw)
    Total
    weight(t)
    Dimensions
    (L×W×H)(mm)
    PCΦ400×300≤100≤105-1011800900×670×860
    PCΦ600×400≤120≤1510-2518.515001200×1050×1200
    PCΦ800×600≤120≤1520-355531001310×1180×1310
    PCΦ1000×800≤200≤1320-4011579001600×1390×1575
    PCΦ1000×1000≤200≤1530-8013286501800×1590×1775
    PCΦ1300×1200≤250≤1580-200240136002060×1600×1890

    Hammer crusher sucessfully installation site :


    What about Warranty of the products?
    Hengixng Equipment grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.


    Why choose hengxing equipment company :

    1. Professional manufacturer of supplying mining crushing equipment, construction equipment, ore beneficiation equipment and mining dryers.
    2. Experienced and professional R&D team and manufacturing team;
    3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
    4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
    5.Contact us for more details about price, packing, shipping and discount.
